Polyurethane Binder & EPDM Granules: The Ideal Combination for Playground Safety Surfacing

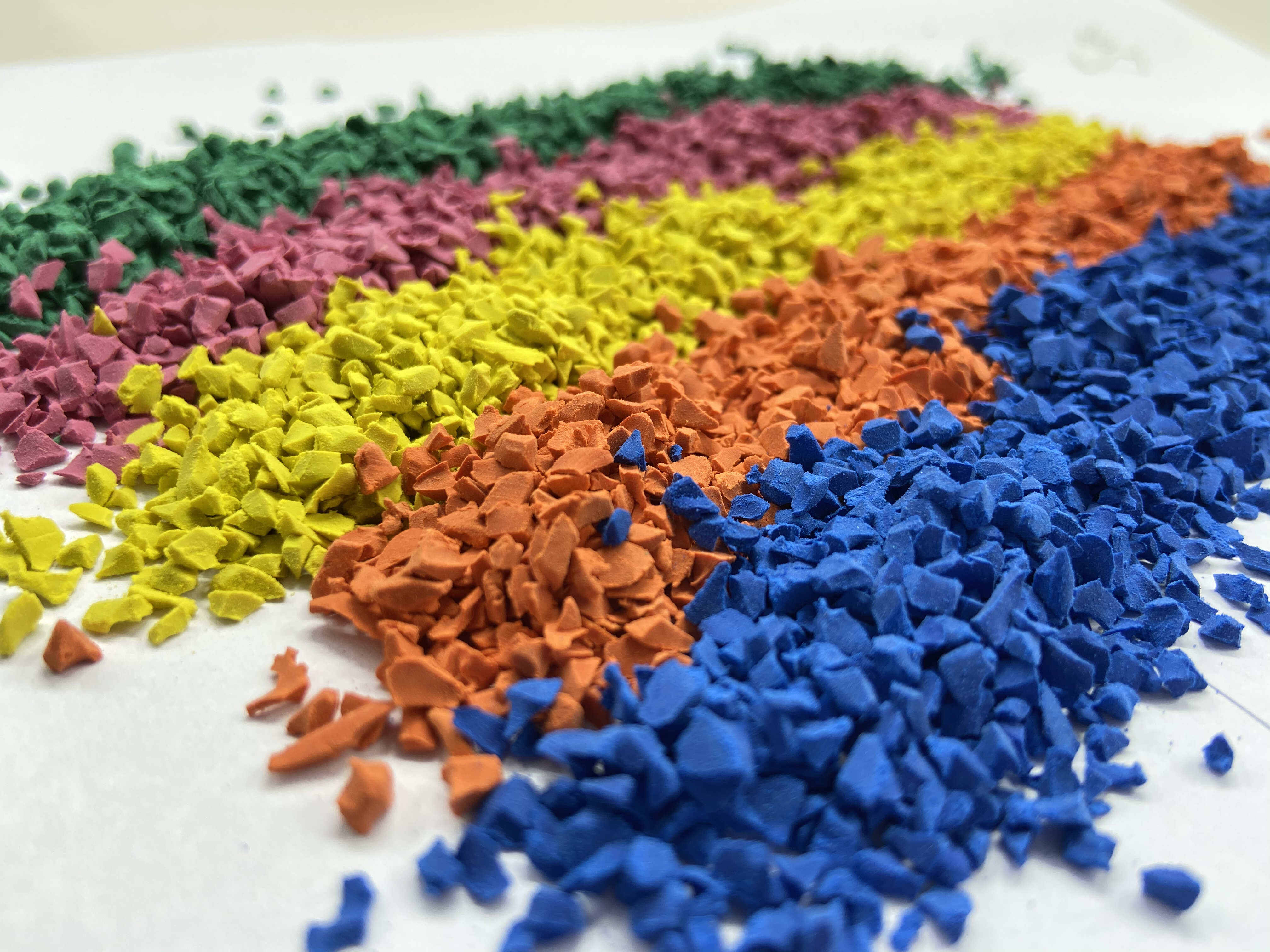

EPDM Rubber Granules: Engineered for Performance and Longevity
Our EPDM (Ethylene Propylene Diene Monomer) granules are premium, vulcanized rubber particles engineered to deliver unparalleled performance in synthetic surfacing. They form the durable, elastic, and colorful wearing course in a permanently elastic system when bound with polyurethane
| Property | Test Method | Specification / Typical Value |
|---|---|---|
| Material Type | - | 100% Virgin EPDM |
| Particle Size (Grain) | ASTM D5644 / ISO 3302-1 | 0.5-1.5mm, 1-3mm, 2-4mm, 3-5mm (Other sizes available) |
| Bulk Density | ASTM D6851 | 650 - 750 kg/m³ |
| Specific Gravity | ASTM D792 | 1.15 - 1.25 |
| Tensile Strength | ASTM D412 | ≥ 2.2 MPa |
| Elongation at Break | ASTM D412 | ≥ 160% |
| Compression Set | ASTM D395 (Method B, 22h @ 70°C) | ≤ 15% |
| Shore A Hardness | ASTM D2240 | 55 - 65 |
| Elastic Recovery | Internal Method | ≥ 92% |
Specify with Confidence
We provide comprehensive support for architects, contractors, and project planners:
CAD Details & Specification Sheets: Download ready-to-use technical documents.
Color Consultation: Access our full RAL and custom color library.
Sample Kits: Request physical samples to evaluate quality and color firsthand.
Calculators: Use our online calculator to estimate material quantities for your project area.
FAQ:
Q1: What is the coverage rate?
A: Coverage depends on grain size and layer thickness. For a 10mm thick layer, 1-3mm granules require approx. 18 kg/m². Contact us for an exact calculation.
Q2: Can EPDM granules be applied over existing concrete?
A: Yes, provided the concrete is sound, clean, free of contaminants, and has adequate drainage. A primer may be required.
Q3: Do you offer global shipping and technical support?
A: EN: Yes, we export worldwide and offer remote technical guidance for installation. Bulk and container orders are welcome.
Beyond Safety Standards: Designing Playgrounds with EPDM Granules and PU Binder
