Court Construction Basics
1. Surface Materials
- Professional indoor: Maple hardwood flooring
- Recreational indoor: Synthetic maple or polyurethane
- Outdoor: Poured concrete or asphalt with acrylic coating
- Elite competitions: Tempered glass courts available

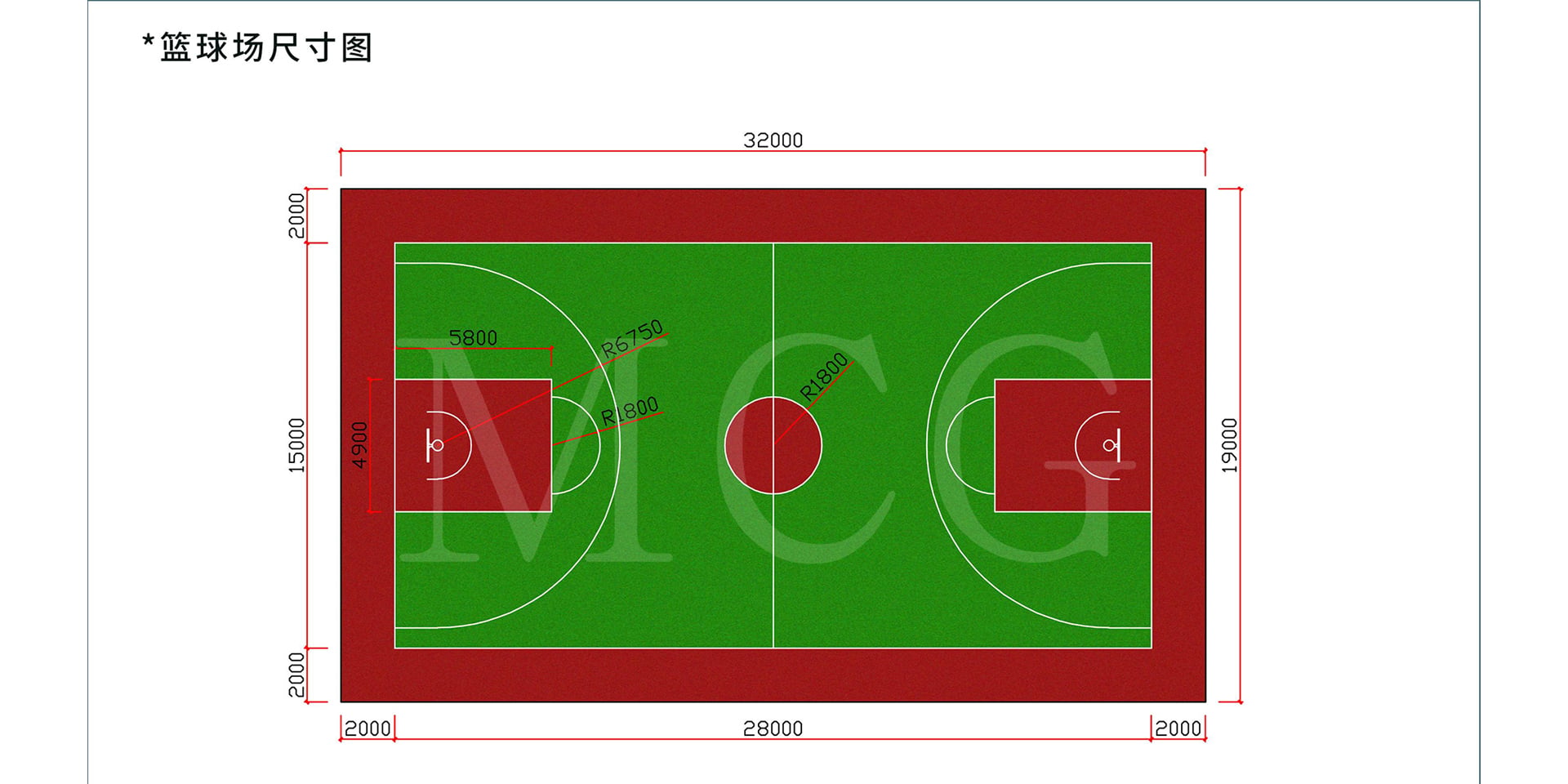

2. Essential Dimensions
Backboard to baseline: 4 feet (1.22m)
Rim diameter: 18 inches (45.7cm)
Backboard size: 72x42 inches (1.83x1.07m)
| Game Area Specifications | ||
| 1. Professional Court Dimensions | NBA/WNBA: | Total area: 4,700 sq ft (436.6 sq m) |
| Sideline clearance: Minimum 3 feet (0.91m) | ||
| FIBA: | Slightly narrower than NBA (49.2ft vs 50ft) | |
| Identical length to NBA (91.9ft) | ||
| 2. Critical Markings | Three-point Arc: | NBA: 23.75ft arc radius (22ft corners) |
| FIBA: Uniform 22.15ft (6.75m) radius | ||
| NCAA: Matches FIBA since 2021 | ||
| Free Throw Lane: | NBA/FIBA: 16ft width | |
| NCAA: 12ft width | ||
| Lane length: 19ft from baseline | ||
| 3. Special Game Zones | Restricted Area: | Semi-circle under basket |
| NBA: 4ft radius | ||
| FIBA: 1.25m radius | ||
| Purpose: Prevent charging fouls near basket | ||
| Team Bench Areas: | 28ft from baseline | |
| 14 seats minimum for professional games | ||
| Coaches box: 28ft long | ||
| Gameplay Features | ||
| 1. Scoring Areas | Three-point Zone: | Accounts for 35-40% of modern NBA shots |
| Corner three is shortest distance (22ft) | ||
| Paint Area: | High-percentage scoring zone | |
| Three-second violation applies | ||
| 2. Tactical Spaces | Elbow: Free throw line extensions | |
| Short corner: 45-degree angle from basket | ||
| Wing: Area between corner and top of key | ||
| 3. Player Movement Rules | Boundary lines: 2-inch width | |
| Jump circle: 12ft diameter | ||
| Substitution zones: Near scorer's table | ||
| Construction Notes | |
| 1. Tolerances | Length: 1 inch (2.54cm) |
| Levelness: 1/4 inch per 10 feet | |
| Lighting: 100+ footcandles for professional | |
| 2. Safety Features | Padding on backboard supports |
| Non-slip surface coating | |
| Proper drainage for outdoor courts | |
Evolution Timeline
1984: NBA adopts current three-point line
1997: Restricted area introduced
2010: FIBA aligns key dimensions with NBA
2021: NCAA completes transition to FIBA three-point distance
Professional Standards
NBA Certification:
- Maple flooring with rubber underlayment
- Temperature maintained at 68-72°F
- Humidity control: 30-50%
FIBA Tournament Requirements:
- FIBA-approved glass backboards
- Electronic shot clocks
- Pressure-treated wood for outdoor events
Note: All specifications based on 2023-24 season regulations. Local building codes may require additional safety modifications. Professional installation recommended for competition-level courts.
